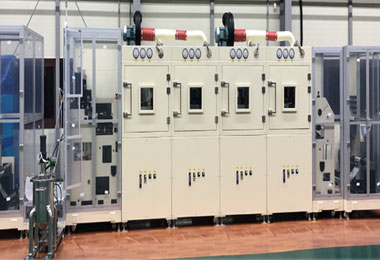

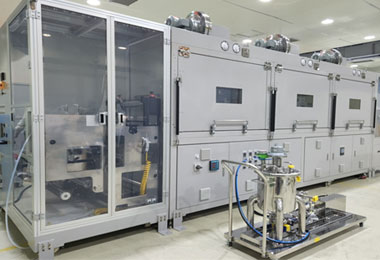

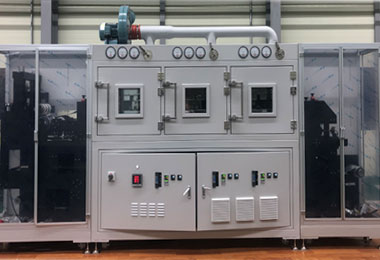

| Description | Specification |
|---|---|
| Working Speed | 5M/min |
| Substrate Width | 120mm |
| Substrate Thickness | 6um |
| Coating Type | Multi Type |
| Loading Uniformity | Target ±1.5% |
| Dryer Type | 0.8M * 3 Zones |
| Heat Source | Electrical Heater |
| Dimension(M) | 1.2(W)*4.6(L)*2.5(H) |
| Description | Specification |
|---|---|
| Working Speed | 5M/min |
| Substrate Width | 400mm |
| Substrate Thickness | 6um |
| Coating Type | Multi Type |
| Loading Uniformity | Target ±1.5% |
| Dryer Type | 1M * 4 Zones |
| Heat Source | Electrical Heater |
| Dimension(M) | 2.0(W)*6.0(L)*2.8(H) |
| Description | Specification |
|---|---|
| Working Speed | 5M/min |
| Substrate Width | 250mm |
| Substrate Thickness | 6um |
| Coating Type | Slit Die |
| Loading Uniformity | Target ±1.5% |
| Dryer Type | 1M * 4 Zones |
| Heat Source | Electrical Heater |
| Dimension(M) | 1.5(W)*6.0(L)*2.5(H) |
| Description | Specification |
|---|---|
| Working Speed | 4M/min |
| Substrate Width | 300mm |
| Substrate Thickness | 6um |
| Coating Type | Slit Die |
| Loading Uniformity | Target ±1.5% |
| Dryer Type | 1.5M * 3 Zones |
| Heat Source | Electrical Heater |
| Dimension(M) | 1.8(W)*7.0(L)*2.8(H) |
| Description | Specification |
|---|---|
| Working Speed | 8M/min |
| Substrate Width | 300mm |
| Substrate Thickness | 6um |
| Coating Type | Slit Die |
| Loading Uniformity | Target ±1.5% |
| Dryer Type | 2.5M * 4 Zones |
| Heat Source | Electrical Heater |
| Dimension(M) | 1.8(W)*15.5(L)*2.8(H) |
| Description | Specification |
|---|---|
| Working Speed | 15M/min |
| Substrate Width | 450mm |
| Substrate Thickness | 6um |
| Coating Type | Slit Die |
| Loading Uniformity | Target ±1.5% |
| Dryer Type | 4.0M * 4 Zones |
| Heat Source | Electrical Heater |
| Dimension(M) | 3.5(W)*25.0(L)*4.0(H) |

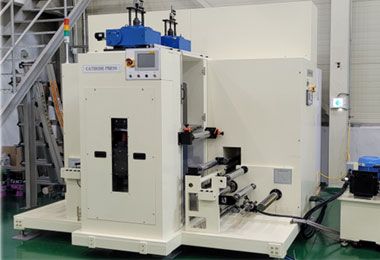

| Description | Specification |
|---|---|
| Working Speed | 3M/min |
| Calendering Width | 200mm |
| Line Pressure | 2.5ton/cm |
| Main Roller Spec’ | Φ200mm * 250mm |
| Calendering Type | Heating/Non-Heating |
| Thicknes Uniformity | Target ±2.0um |
| Tension Control | Dancer Roller Control |
| Dimension(M) | 1.0(W)*2.0(L)*1.8(H) |
| Description | Specification |
|---|---|
| Working Speed | 5M/min |
| Calendering Width | 300mm |
| Line Pressure | 3.5ton/cm |
| Main Roller Spec’ | Φ300mm * 400mm |
| Calendering Type | Heating/Non-Heating |
| Thicknes Uniformity | Target ±2.0um |
| Tension Control | Dancer Roller Control |
| Dimension(M) | 3.5(W)*4.0(L)*2.0(H) |
| Description | Specification |
|---|---|
| Working Speed | 10M/min |
| Calendering Width | 300mm |
| Line Pressure | 5.0ton/cm |
| Main Roller Spec’ | Φ380mm * 400mm |
| Calendering Type | Heating/Non-Heating |
| Thicknes Uniformity | Target ±2.0um |
| Tension Control | Servo Motor Torque |
| Dimension(M) | 3.5(W)*2.3(L)*2.6(H) |
| Description | Specification |
|---|---|
| Working Speed | 50M/min |
| Calendering Width | 400mm |
| Line Pressure | 3.5ton/cm |
| Main Roller Spec’ | Φ500mm * 550mm |
| Calendering Type | Heating/Non-Heating |
| Thicknes Uniformity | Target ±2.0um |
| Tension Control | Dancer Roller Control |
| Dimension(M) | 5.0(W)*4.0(L)*2.8(H) |
| Description | Specification |
|---|---|
| Working Speed | 30M/min ↑ |
| Calendering Width | 400mm ↓ |
| Line Pressure | 5.0ton/cm ↑ |
| Main Roller Spec’ | Φ500mm * 550mm |
| Calendering Type | Heating/Non-Heating |
| Thicknes Uniformity | Target ±2.0um |
| Tension Control | Dancer Roller Control |
| Dimension(M) | 6.2(W)*4.0(L)*2.8(H) |
| Description | Specification |
|---|---|
| Working Speed | 60M/min ↑ |
| Calendering Width | 530mm ↓ |
| Line Pressure | 5.5ton/cm ↑ |
| Main Roller Spec’ | Φ500mm * 650mm |
| Calendering Type | Heating/Non-Heating |
| Thicknes Uniformity | Target ±2.0um |
| Tension Control | Dancer Roller Control |
| Dimension(M) | 7.5(W)*4.0(L)*3.0(H) |
| Description | Specification |
|---|---|
| Working Speed | 80M/min ↑ |
| Calendering Width | 680mm ↓ |
| Line Pressure | 5.0ton/cm ↑ |
| Main Roller Spec’ | Φ700mm * 800mm |
| Calendering Type | Heating/Non-Heating |
| Thicknes Uniformity | Target ±2.0um |
| Tension Control | Dancer Roller Control |
| Dimension(M) | 8.7(W)*5.5(L)*3.5(H) |

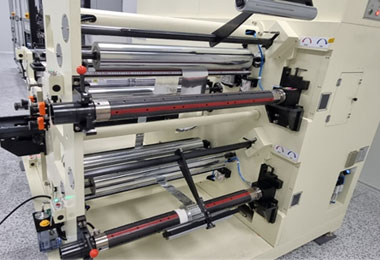

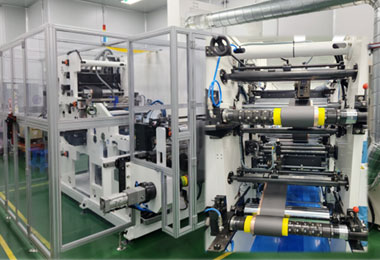

| Description | Specification |
|---|---|
| Working Speed | 30M/min |
| Substrate Width | 400mm |
| Burr Size | 15um |
| Slitting Type | WC Ring Knife Shear |
| Slitted Width Uniformity | Target ±0.5mm |
| Knife Unit Change | Cartridge Block Knife |
| Dust Treatment | Dust Collector Suction |
| Dimension(M) | 8.7(W)*5.5(L)*3.5(H) |
| Description | Specification |
|---|---|
| Working Speed | 30M/min |
| Substrate Width | 400mm |
| Burr Size | 15um |
| Slitting Type | WC Ring Knife Shear |
| Slitted Width Uniformity | Target ±0.5mm |
| Knife Unit Change | Cartridge Block Knife |
| Dust Treatment | Dust Collector Suction |
| Dimension(M) | 8.7(W)*5.5(L)*3.5(H) |
| Description | Specification |
|---|---|
| Working Speed | 30M/min |
| Substrate Width | 400mm |
| Burr Size | 15um |
| Slitting Type | WC Ring Knife Shear |
| Slitted Width Uniformity | Target ±0.5mm |
| Knife Unit Change | Cartridge Block Knife |
| Dust Treatment | Dust Collector Suction |
| Dimension(M) | 8.7(W)*5.5(L)*3.5(H) |

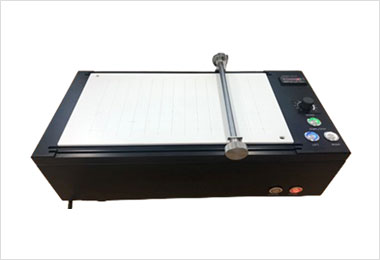

| Description | Specification |
|---|---|
| Coating size | 2270 x 150 mm |
| The speed of a test | 2.5 ~ 70 mm/sec |
| Vacuum adsorption chuck | Nextrema, steel |
| Material fixing method | Vacuum adsorption Fixing |
| Dimension(mm) | 450(W)*270(L)*210(H) |
| Input Power | AC220V 50/60Hz |
| Key Features | Adjusting speed and direction |

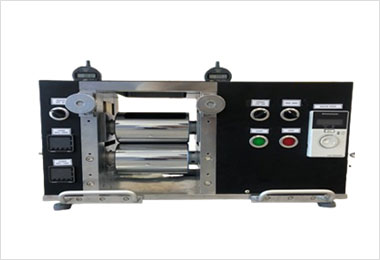

| Description | Specification |
|---|---|
| Type | Non-Heating Roll |
| Method | Gap Control By |
| Width | 50 ~ 100mm |
| Machine Speed | 0.1 ~ 3.0 M/min |
| Calendering Roll | Φ 100*150mm |
| Dimension(mm) | 600(W)*380(L)*350(H) |
| Weight | 70Kg |

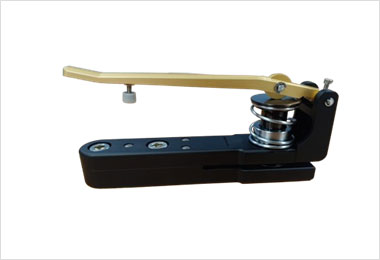

| Description | Specification |
|---|---|
| Punching shape | Round |
| Punching Size | Φ4 ~ Φ30 |
| Clearance | 0.001 mm |
| Body Material | High-strength aluminum |
| Blade Material | Cemented carbide |
| Main target | Electrode material Foil |
| Dimension(mm) | 30(W)*155(L)*65(H) |
